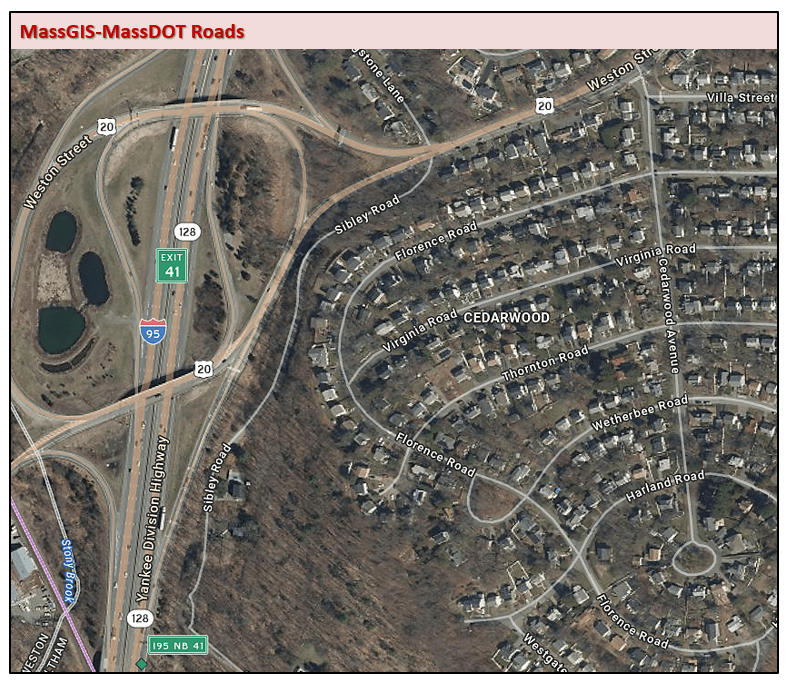

Overview
Formerly known as the Massachusetts Highway Department (MHD) Roads, then the Executive Office of Transportation - Office of Transportation Planning (EOT-OTP) Roads, the MassGIS-MassDOT Roads layer includes linework from the 1:5,000 road and rail centerlines data that were interpreted as part of the 1990's Aerial Imagery project. The Massachusetts Department of Transportation - Office of Transportation Planning, which maintains the primary source for this layer, continues to add linework from municipal and other sources and update existing linework using the most recent aerial ortho imagery as a base. The attribute table includes many "road inventory" fields maintained in MassDOT's linear referencing system. See the Attributes section below for more details.
The current MassGIS-MassDOT hybrid data layer was first published in November 2018, based on the MassDOT 2017 year-end Road Inventory layer and results of a 2014-2015 MassDOT-Central Transportation Planning Staff project to conflate street names and other attributes from MassGIS' "base streets" to the MassDOT Road Inventory linework. The base streets are continually maintained by MassGIS as part of the NextGen 911 and Master Address Database (MAD) projects. MassGIS staff reviewed the conflated layer and added many base street arcs digitized after the completion of the conflation work. MassGIS added several fields to support legacy symbology and labeling. Other edits included modifying some linework in areas of recent construction and roadway reconfiguration to align to 2017-2018 Google ortho imagery, and making minor fixes to attributes and linework. MassGIS continues to modify the layer as needed.
The following feature classes are available:
- EOTROADS_ARC (aka "All Roads") is the full statewide layer. Created from this layer are two subsets that may be useful in smaller-scale mapping:
- EOTMAJROADS_ARC comprises major roads (RDTYPE not 5 or 6).
- EOTMAJROADS_RTE_MAJOR is a multi-part line feature class consisting of all Interstate and U.S. routes and several major State routes.
Note: The "EOT" in the layer names was not changed to "DOT" because legacy applications and web services rely on the existing names.
Production
MassGIS received the 2017 year-end release of MassDOT's Road Inventory data and, in addition to the edits described above, further processed the data to facilitate display, particularly in MassMapper (which includes the statewide Base Map) and desktop GIS software. Processing included:

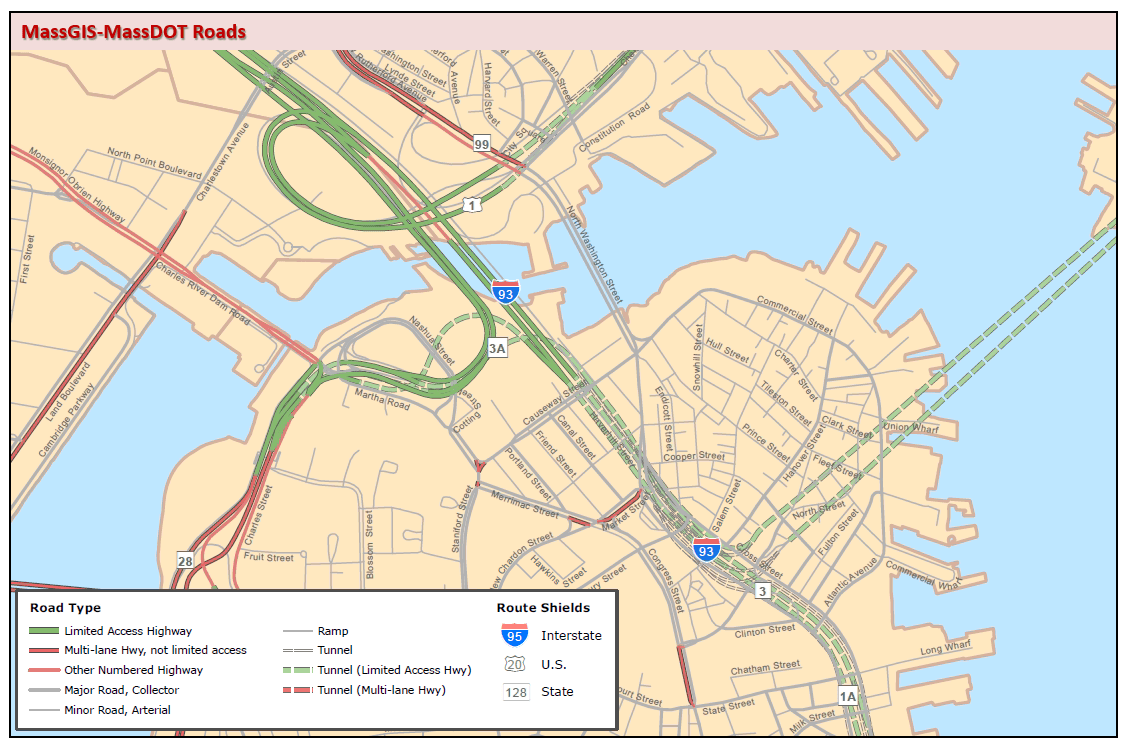

- adding the CLASS, ADMIN_TYPE and RDTYPE fields, used for line and route marker (shields) symbolization
- adding the ALTRTNUM<1-4> and ALTRT1TYPE fields for enhanced route marker labeling
- adding the RT_NUMBER and STREET_NAME fields so that existing applications that use these fields would continue to function
- adding other fields as described below
To produce the Major Roads layer (EOTMAJROADS_ARC), MassGIS selected arcs where RDTYPE NOT IN (5,6) from the full layer, dropped all fields included in the original layer from MassDOT, and dissolved on all the fields added by MassGIS to reduce the number of arc segments.
The Major Routes layer (EOTMAJROADS_RTE_MAJOR) was produced by MassGIS from the Major Roads layer by selecting all features where ADMIN_TYPE = 1 (Interstate) or 2 (U.S.), or where the RT_NUMBER or any of the alternate route numbers for state routes (ADMIN_TYPE = 3) is 2, 3, 8, 9, 18, 24, 25, 28 or 128. In ArcGIS 10.x, these roads were dissolved as multi-part features on the ADMIN_TYPE and RT_NUMBER fields. This layer was produced for fast display at small (e.g. statewide) scales rather than for true route-based analysis.
Attributes
Fields from MassGIS
Each arc in the "All Roads" EOTROADS_ARC feature class contains the following fields added by MassGIS:
| Field Name | Type | Description |
|---|---|---|
| CLASS | 1-I | Designates a road based on functional classification and access; used for plotting. Classes are: The CLASS field was first calculated to 0 for all records and then coded in Oracle SQL*Plus based on the following WHERE clauses: 1: ADMIN_TYPE = 1 or (FUNCTIONALCLASSIFICATION = 1 and ACCESSCONTROL = 1) or (FUNCTIONALCLASSIFICATION = 2 and ACCESSCONTROL = 1) |
| ADMIN_TYPE | 1-I | Type of route in the RT_NUMBER field. Based on the ROUTESYSTEM field. Types are: 1 - Interstate 2 - U.S. Highway 3 - State Route 0 - Not a numbered route |
| STREET_NAME | 80-C | Street name. Same as the STREETNAME field, included for legacy application purposes. In the shapefile download this field is STREET_NAM. |
| RT_NUMBER | 4-C | Primary route number. This is the route number of the road type listed in ADMIN_TYPE (where ADMIN_TYPE is 1-3). Based on the ROUTENUMBER field but not including values that begin with "N", which are codes used internally by MassDOT and not signed route numbers. |
| ALTRTNUM1 ALTRTNUM2 ALTRTNUM3 ALTRTNUM4 | 4-C | Alternate Route numbers. Type is either U.S. or State route for ALTRTNUM1, as indicated in the ALTRT1TYPE field. All other alternate routes are State routes. No road in the state has more than four alternate routes. These fields were populated using the RoadSegementToRouteList table that was included in an earlier data delivery from MassDOT. |
| ALTRT1TYPE | 1-I | Administrative Type for the route number in the ALTRTNUM1 field (2 = U.S. Highway, 3 = State Route) |
| RDTYPE | 1-I | Expanded version of the CLASS field, with additional values for ramps and tunnels. Values 1 through 6 are the same as CLASS (above). Other values include: In some cases, particularly for added features, MassGIS staff used the ROUTE_SYSTEM field to assist in populating RDTYPE. |
| MGIS_TOWN | 1-I | Official city or town name |
| LENGTH_MI | Double | Length of line in miles. From the Calculate Geometry tool in ArcGIS Pro 3.3.2. |
| LENGTH_FT | Double | Length of line in feet. From the Calculate Geometry tool in ArcGIS Pro 3.3.2. |
The Major Roads layer EOTMAJROADS_ARC contains only the above fields added by MassGIS except MGIS_TOWN, LENGTH_MI and LENGTH_FT. The CLASS field contains values 1, 2, 3 and 4.
The Major Routes layer EOTMAJROADS_RTE_MAJOR contains only the ADMIN_TYPE and RT_NUMBER fields.
Fields from MassDOT
The other fields in the arc attribute table were included in the data from MassDOT. These include roadway classification, ownership, physical conditions, traffic volumes, pavement conditions, highway performance monitoring information, and more. For details see the Road Inventory Data Dictionary (PDF format, 105 kb). Note that in the shapefile download, that format only allows for ten characters in field names; the longer Road Inventory File field names are truncated when converted from an ArcSDE layer to a shapefile.
Maintenance
MassGIS staff adds new linework to this layer and makes edits as needed as part of the NextGen 911-MAD day-to-day workflow. Details are in the metadata included with the downloads. The October 2024 included a thorough review, with thousands of features added or modified.
Since this layer does not contain address ranges, it may not be used for linear geocoding (address matching) in GIS software. The most recent roads data publicly available from MassGIS that may be used for geocoding applications are the TIGER roads from the 2020 U.S. Census. For more accurate and complete address matching use the Statewide Address Points for Geocoding.
Please contact MassGIS with any issues on this layer. Separately, MassDOT maintains a process to submit updates to its Road Inventory.
| Last updated: | October 2, 2024 |
|---|
